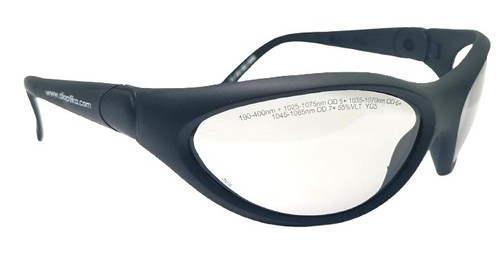

LG-228N 1064nm Nd:YAG Laser Safety Glasses | Clear - High Visibility
Laser Applications
- Nd:YAG - 1064nm
Key Features
- Protection: OD 7+ at 1064nm; OD 5+ from 1025–1075nm
- Standards: AU/NZS 2211.1:2004, ANSI Z136 (US), CE, EN207/208
- Visibility: 55% VLT neutral colour high-visibility lens
- Design: Wraparound frame with adjustable arms for a secure fit
- Durability: Flexible, robust construction for professional use
- Accessories: Protective case, adjustable head strap, lens cloth
- Warranty: 24 months
- Manufactured in the USA
The LG-228N laser safety glasses are engineered to provide high-level eye protection for professionals working with 1064nm Nd:YAG laser systems. They deliver OD 7+ protection at 1064nm and OD 5+ coverage from 1025nm to 1075nm, supporting a wide range of medical, industrial, and scientific laser applications. Designed with a lightweight neutral-colour filter and 55% Visible Light Transmission (VLT), the LG-228N maintains excellent visibility while ensuring effective attenuation at critical wavelengths. The modern wraparound frame improves coverage and security, while adjustable arms allow for a stable and comfortable fit during extended use. Fully tested and certified to Australian, US, European, and international laser safety standards, the LG-228N is a dependable solution for regulated environments.
Specifications (Printed on the Glasses)
| Wavelength | OD (Optical Density) |
|---|---|
| 1045–1065nm | 7+ |
| 1035–1070nm | 6+ |
| 1025–1075nm | 5+ |
| 190–400nm | 5+ |
| EN207 L-Ratings |
|---|
| 1045–1065 D LB6 + IR LB7 + M LB7Y S |
| 1035–1070 DIR LB6 + M LB6Y |
| 1025–1075 DIR LB5 + M LB5Y |
